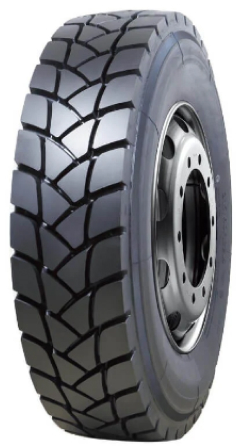

315/80R22.5 Torque TQ768 PR20 156/152L TL ON/OFF drive M+S 3PMSF Designed UK

315/80R22.5 Torque TQ768 PR20 156/152L TL ON/OFF Drive M+S 3PMSF Designed UK

The Torque TQ768 is a high-performance ON/OFF-road drive axle tire, designed for commercial vehicles operating in mixed road and off-road conditions. Manufactured by Torque, this tire is engineered to provide superior traction, durability, and resistance to harsh environments. Its aggressive tread design makes it particularly suited for construction, mining, and logging applications.

Key Specifications:

• Tyre Size: 315/80 R 22.5
• Type: Radial (R)
• Tubeless/Tubed: TL (Tubeless)
• Load Index / Speed Index: 156/150K
• Ply Rating (PR): 18
• Tread Model: WDC 55 (Aggressive On/Off-road tread)
• Manufacturer: Torque
• Certification: ECE 54, ECE 117
• Snow and Mud Marking (M+S): Yes
• Three Peak Mountain Snowflake (3PMSF): Yes
• Recommended Rim Width: 9.00 inches
• Permissible Rim Width: 9.75 inches
• Tyre Width: 317 mm
• Outer Diameter: 1097 mm
• Static Radius: 508 mm
• Rolling Circumference: 3346 mm
• Payload Capacity: At 110 km/h: 4000 kg At kph (1): 1100 kg
• Inflation Pressure: 8.30 bar
• Weight: 70.9 kg
• Rolling Resistance: D
• Wet Grip Rating: B
• Rolling Noise Level: A (73 dB)
• Stud Height: 23.0 mm
• Aspect Ratio: 80

Features & Benefits:

1. Superior Traction in On/Off-Road Conditions

• The aggressive TQ768 tread pattern is designed to maximize grip on unpaved surfaces, including gravel, mud, and loose dirt.
• Deep and wide tread blocks enhance traction and self-cleaning capabilities, preventing mud and debris from accumulating.

2. Durability & Heavy Load Capacity

• With an 18-ply rating (PR) and a reinforced casing, the Torque TQ768 is built to withstand heavy loads in demanding work environments.
• The thick stud height (23.0 mm) improves wear resistance and ensures a longer service life.

3. All-Weather Performance

• M+S (Mud & Snow) and 3PMSF (Three-Peak Mountain Snowflake) certified, meaning the tire meets industry standards for winter and severe weather conditions.
• Wet grip rating of B ensures improved braking performance on wet and slippery roads.

4. Noise Reduction & Driver Comfort

• Despite its aggressive tread, the rolling noise rating of A (73 dB) ensures quieter operation compared to other off-road tires, improving driver comfort.

5. Fuel Efficiency & Stability

• D-rated rolling resistance ensures a balance between grip and fuel efficiency, making it a cost-effective choice for fleet operators.
• Optimized sidewall reinforcement improves stability under heavy loads.

Best Applications:

• Construction & Mining Trucks
• Logging & Forestry Vehicles
• Mixed Highway & Off-Road Transport
• Heavy-Duty Dump Trucks & Tippers
• Winter Road Transport in Harsh Conditions

The Torque TQ768 315/80R22.5 is the perfect choice for fleets operating in rugged conditions, offering a blend of high durability, superior traction, and reliable performance across all terrains.
